Wavelet-Convolutional Neural Network: An Improved Deep Learning Model for Breast Cancer Detection from Histopathology Images WCNN Breast Cancer
Abstract
Background: Invasive ductal carcinoma (IDC) is a prevalent type of breast cancer with significant mortality rates. Early detection is crucial for effective treatment options. Deep learning techniques have shown promise in medical image analysis, but further improvements are needed.

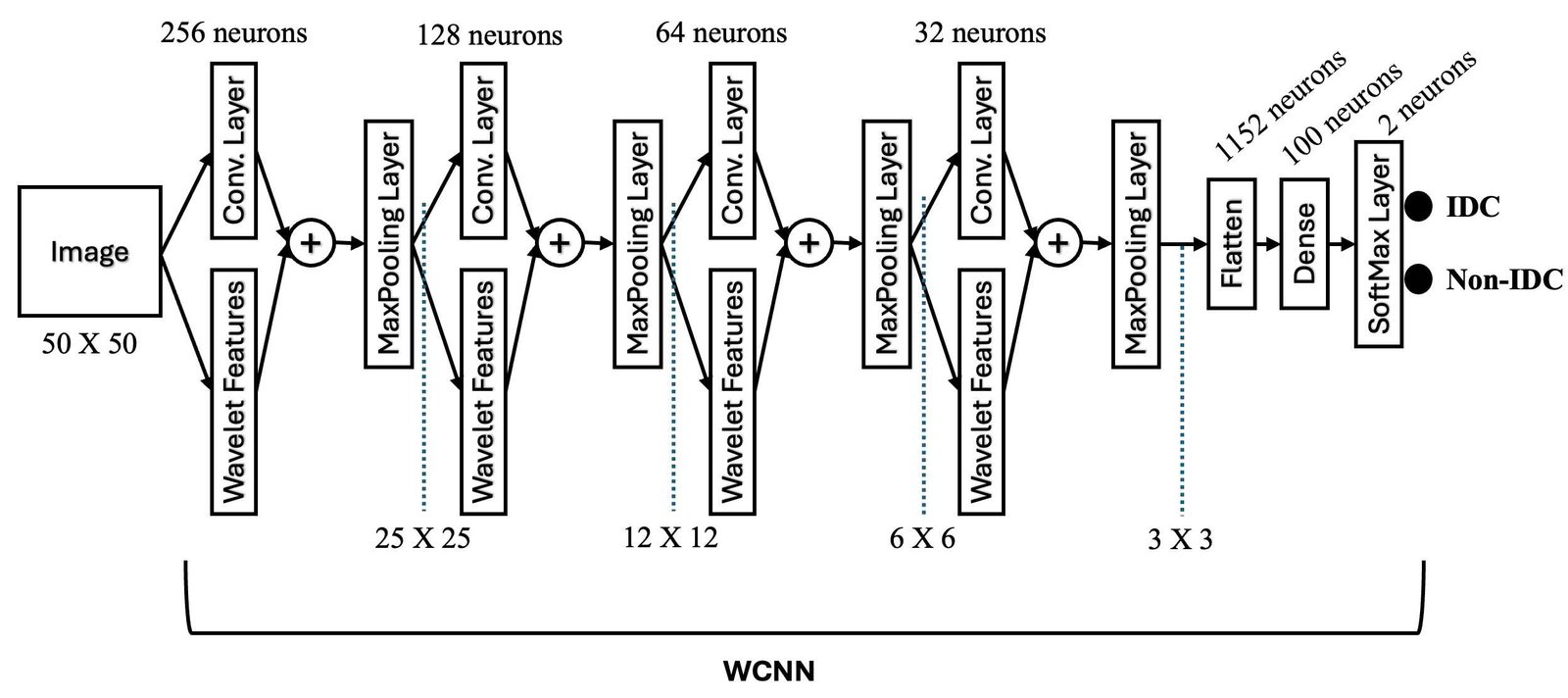

Methods: A Wavelet-Convolutional Neural Network (WCNN) is proposed, incorporating wavelet filters and convolutional filters in each layer to capture both frequency and spatial domain features. The processed images resulted from both types of filters are combined and passed through a MaxPooling layer to extract salient features. Four such hybrid layers are considered for extracting effective features. This novel approach allows the model to effectively learn multi-scale representations, leading to improved performance in breast cancer classification tasks. The model was trained and evaluated on a publicly available breast histopathology image dataset.

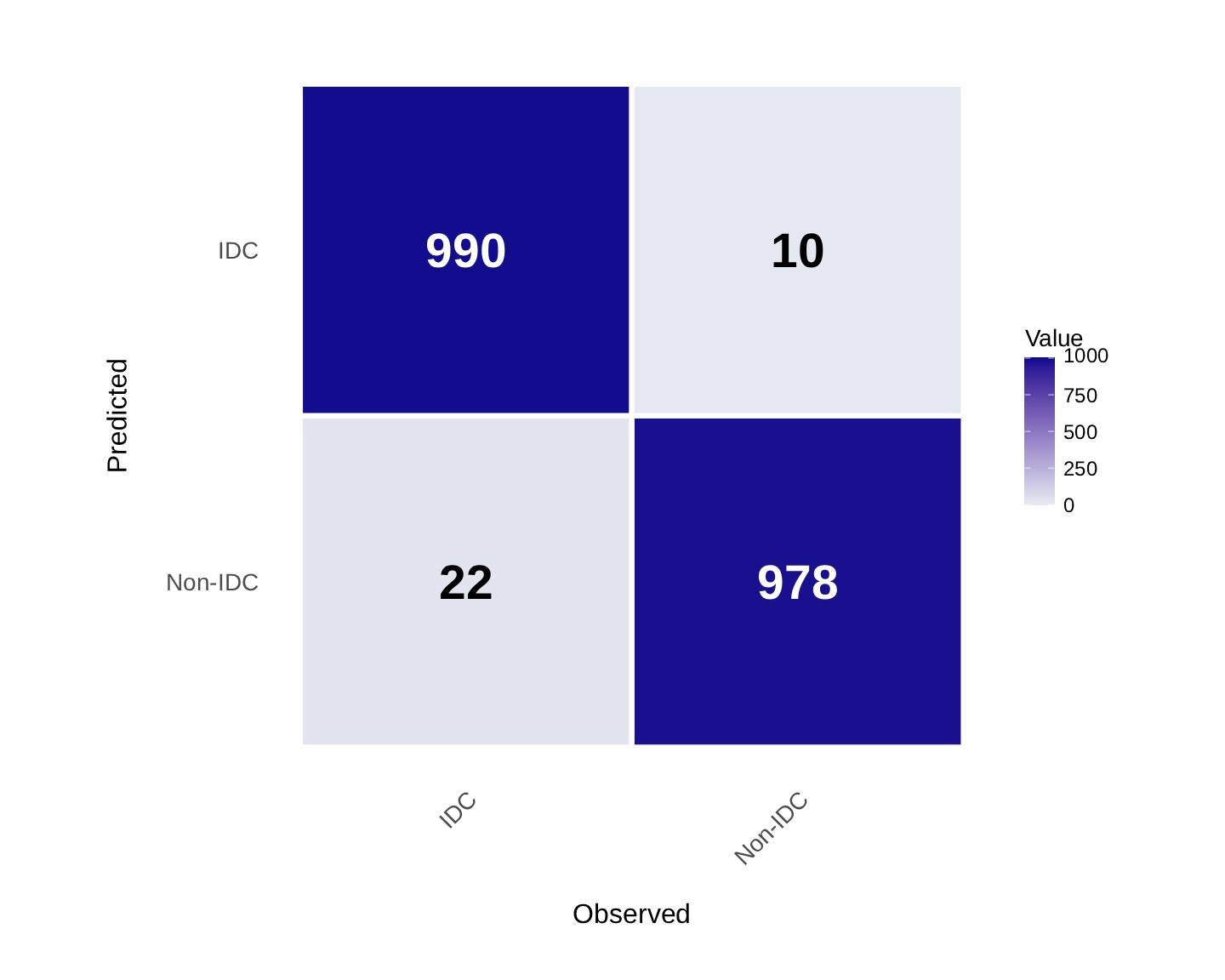

Results: The proposed WCNN achieved a classification accuracy of 98.4% for breast cancer detection, outperforming existing state-of-the-art models.
Conclusion: The WCNN framework demonstrates the potential of combining wavelet and convolutional filters for improved breast cancer detection, offering a promising approach for early diagnosis and better patient outcomes.
Full text article
References
Hulka, BS, Stark A T. Breast cancer: cause and prevention. The Lancet, 1995:346(8979), 883-887. doi:10.1016/S0140-6736(95)92713-1.
Key TJ, Verkasalo PK, Banks E. Epidemiology of breast cancer. The lancet oncology, 2001:2(3), 133-140. doi: 10.1016/S1470-2045(00)00254-0.
Darbre PD. Underarm cosmetics are a cause of breast cancer. European Journal of Cancer Prevention, 2001:10(5), 389-394. doi: 10.1097/00008469-200110000-00002.
Suami H, Chang DW. Overview of surgical treatments for breast cancer–related lymphedema. Plastic and reconstructive surgery, 2010:126(6), 1853-1863. doi: 10.1097/PRS.0b013e3181f44658.
Goldhirsch A, Coates AS, Gelber RD, Glick JH, Thürlimann B, Senn HJ, et al. First—select the target: better choice of adjuvant treatments for breast cancer patients. Annals of oncology, 2006:17(12), 1772-1776. doi: 10.1093/annonc/mdl398.
Korde LA, Somerfield MR, Carey LA, Crews JR, Denduluri N, Hwang ES, et al. Neoadjuvant chemotherapy, endocrine therapy, and targeted therapy for breast cancer: ASCO guideline. Journal of Clinical Oncology, 2021:39(13), 1485-1505. doi: 10.1200/JCO.20.03399.
Kausar T, MingJiang W, Ashraf MA, Kausar A. SmallMitosis: Small Size Mitotic Cells Detection in Breast Histopathology Images. 2020 IEEE Access. doi: 10.1109/ACCESS.2020.3044625.
Bacha S, Taouali O. A novel machine learning approach for breast cancer diagnosis. Measurement, 2022: 187, 110233. doi: 10.1016/j.measurement.2021.110233.
Liu L, Wang Y, Zhang P, Qiao H, Sun T, Zhang H, et al. Collaborative transfer network for multi-classification of breast cancer histopathological images. IEEE Journal of Biomedical and Health Informatics, 2023:28(1), 110-121. doi: 10.1109/JBHI.2023.3283042.
Li G, Yuan T, Li C, Zhuo J, Jiang Z, Wu J, et al. Effective Breast Cancer Recognition Based on Fine-Grained Feature Selection. IEEE Access, 2020: 8, 227538-227555. doi: 10.1109/ACCESS.2020.3046309.
Chiu HJ, Li THS, Kuo PH. Breast Cancer–Detection System Using PCA, Multilayer Perceptron, Transfer Learning, and Support Vector Machine. IEEE Access, 2020:8, 204309-204324. doi: 10.1109/ACCESS.2020.3036912.
Vijayarajeswari R, Parthasarathy P, Vivekanandan S, Basha AA. Classification of mammogram for early detection of breast cancer using SVM classifier and Hough transform. Measurement, 2019:146, 800-805. doi: 10.1016/j.measurement.2019.05.083.
Valkonen M, Isola J., Ylinen O., Muhonen, V., Saxlin, A., Tolonen, T., et al. Cytokeratin-supervised deep learning for automatic recognition of epithelial cells in breast cancers stained for ER, PR, and Ki-67. IEEE transactions on medical imaging, 2019:39(2), 534-542. doi: 10.1109/TMI.2019.2933656
Wu, J., & Hicks, C. (2021). Breast cancer type classification using machine learning. Journal of personalized medicine, 11(2), 61. doi: https://doi.org/10.3390/jpm11020061
Zheng J, Lin D, Gao Z, Wang S, He M, Fan J. Deep learning assisted efficient AdaBoost algorithm for breast cancer detection and early diagnosis. IEEE Access, 2020:8, 96946-96954. doi: 10.1109/ACCESS.2020.2993536
Alzubaidi L, Al-Shamma O, Fadhel MA, Farhan L, Zhang J, Duan Y. Optimizing the performance of breast cancer classification by employing the same domain transfer learning from hybrid deep convolutional neural network model. Electronics, 2020:9(3), 445. doi: 10.3390/electronics9030445
Shu X, Zhang L, Wang Z, Lv Q, Yi, Z. Deep neural networks with region-based pooling structures for mammographic image classification. IEEE transactions on medical imaging, 2020:39(6), 2246-2255. doi: 10.1109/TMI.2020.2968397
Wang, Y., Wang, N., Xu, M., Yu, J., Qin, C., Luo, X., et al. Deeply-supervised networks with threshold loss for cancer detection in automated breast ultrasound. IEEE transactions on medical imaging, 2019:39(4), 866-876. doi: 10.1109/TMI.2019.2936500.
Das K, Conjeti S, Chatterjee J, Sheet D. Detection of Breast Cancer From Whole Slide Histopathological Images Using Deep Multiple Instance CNN. IEEE Access, 2020:8, 213502-213511. doi: 10.1109/ACCESS.2020.3040106.
Gour M., Jain S, Sunil Kumar T. Residual learning based CNN for breast cancer histopathological image classification. International Journal of Imaging Systems and Technology, 2020 :30(3), 621-635. doi: 10.1002/ima.22403.
Brancati N, De Pietro G, Frucci M, Riccio D. A deep learning approach for breast invasive ductal carcinoma detection and lymphoma multi-classification in histological images. IEEE Access, 2019 :7, 44709-44720. doi: 10.1109/access.2019.2908724.
Lymphoma and IDC dataset-2016. Available: http://www.andrewjanowczyk.com/deep-learning.
Sajiv G, Ramkumar G, Shanthi S, Chinnathambi A, Alharbi SA. Predicting Breast Cancer Risk from Histopathology Images using Hybrid Deep Learning Classifier. Medical Engineering & Physics, 2024:104149. doi: 10.1016/j.medengphy.2024.104149.
Sampath N, Srinath NK. Breast cancer detection from histopathological image dataset using hybrid convolution neural network. International Journal of Modeling, Simulation, and Scientific Computing, 2024:15(04), 2441003. doi: 10.1142/S1793962324410034
Sharma S, Kumar S. The Xception model: A potential feature extractor in breast cancer histology images classification. ICT Express, 2022:8(1), doi: 101-108. 10.1016/j.icte.2021.11.010
Saxena S, Shukla S, Gyanchandani M. Pre‐trained convolutional neural networks as feature extractors for diagnosis of breast cancer using histopathology. International Journal of Imaging Systems and Technology, 2020:30(3), 577-591. doi: 10.1002/ima.22399
Aldakhil LA, Alhasson HF, Alharbi, SS. Attention-based deep learning approach for breast cancer histopathological image multi-classification. Diagnostics, 2024 :14(13), 1402. doi: 10.3390/diagnostics14131402
Maleki A, Raahemi M, Nasiri H. Breast cancer diagnosis from histopathology images using deep neural network and XGBoost. Biomedical Signal Processing and Control, 2023 :86, 105152. doi: 10.1016/j.bspc.2023.105152
Das A, Mohanty MN, Mallick PK, Tiwari P, Muhammad K, Zhu H. Breast cancer detection using an ensemble deep learning method. Biomedical Signal Processing and Control, 2021:70, 103009. doi: 10.1016/j.bspc.2021.103009
https://www.kaggle.com/datasets/paultimothymooney/breast-histopathology-images. Accessed on 21st July, 2024.
Boujelbene R, Jemaa YB, Zribi M. A comparative study of recent improvements in wavelet-based image coding schemes. Multimedia Tools and Applications, 2019;78(2), 1649-1683. doi: 10.1007/s11042-018-6262-4
